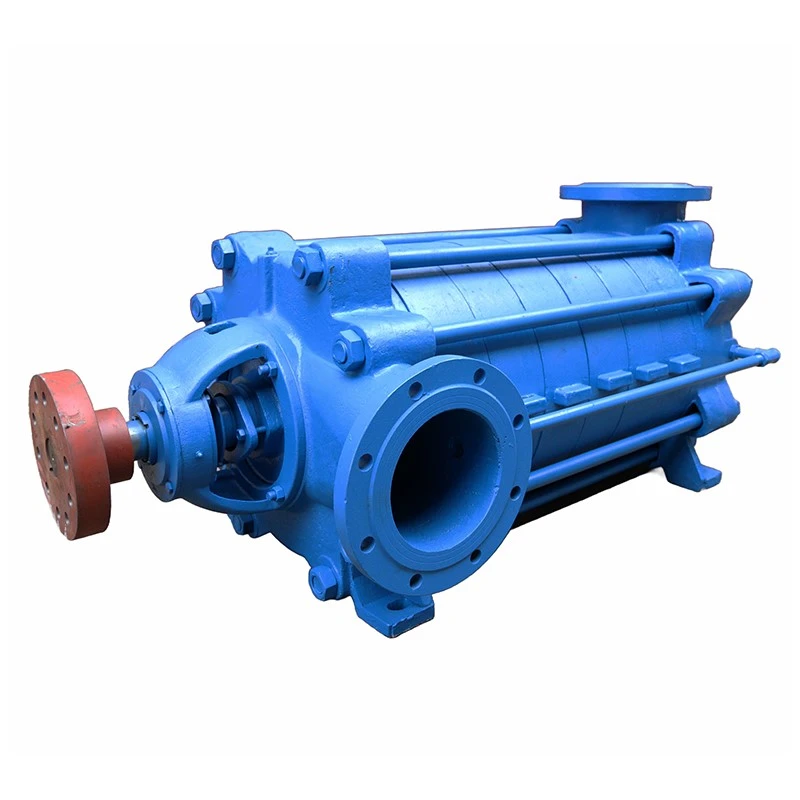

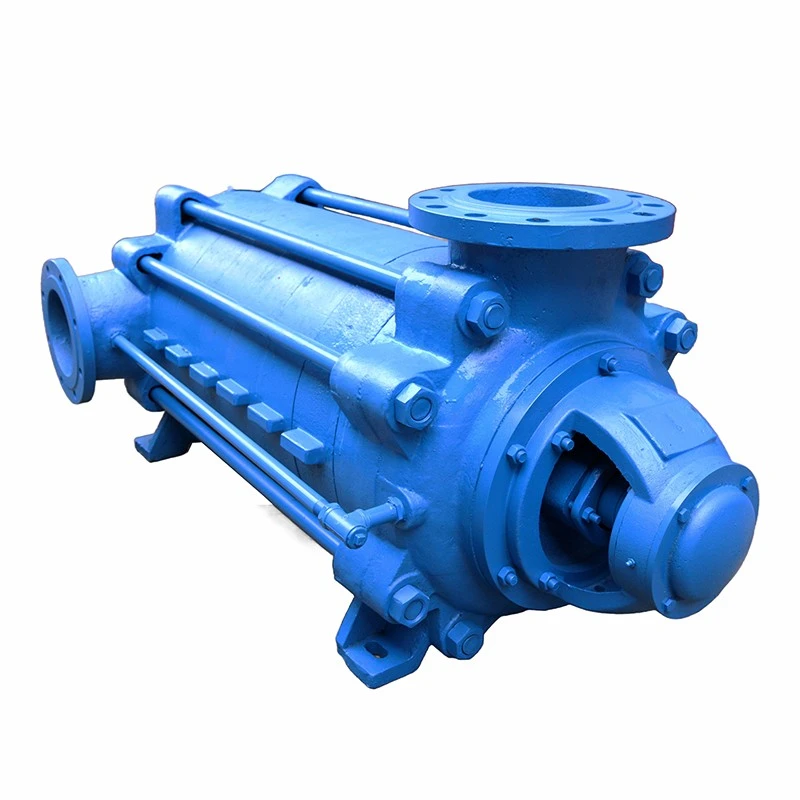

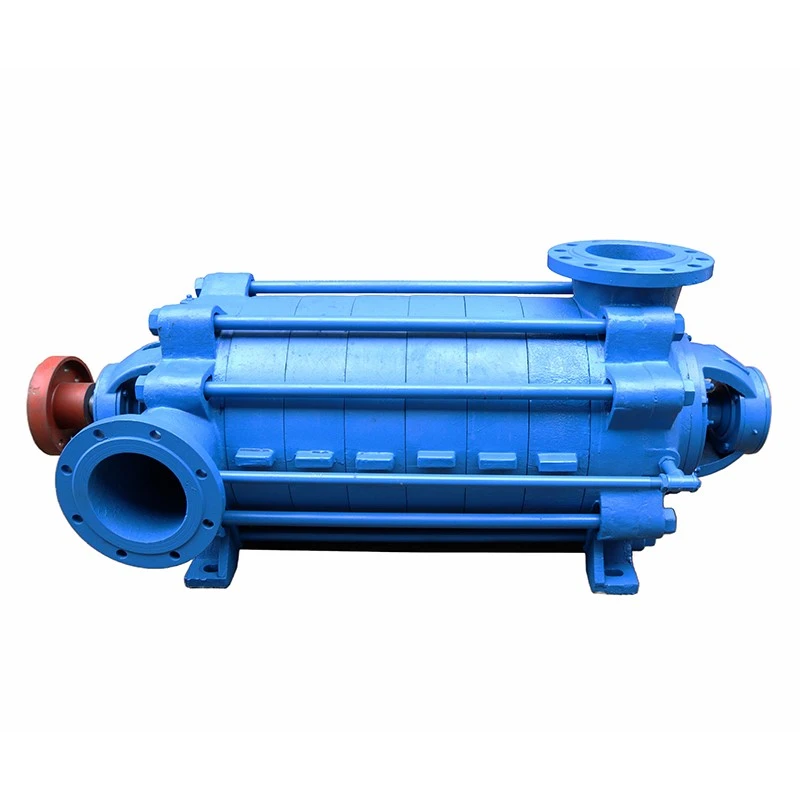

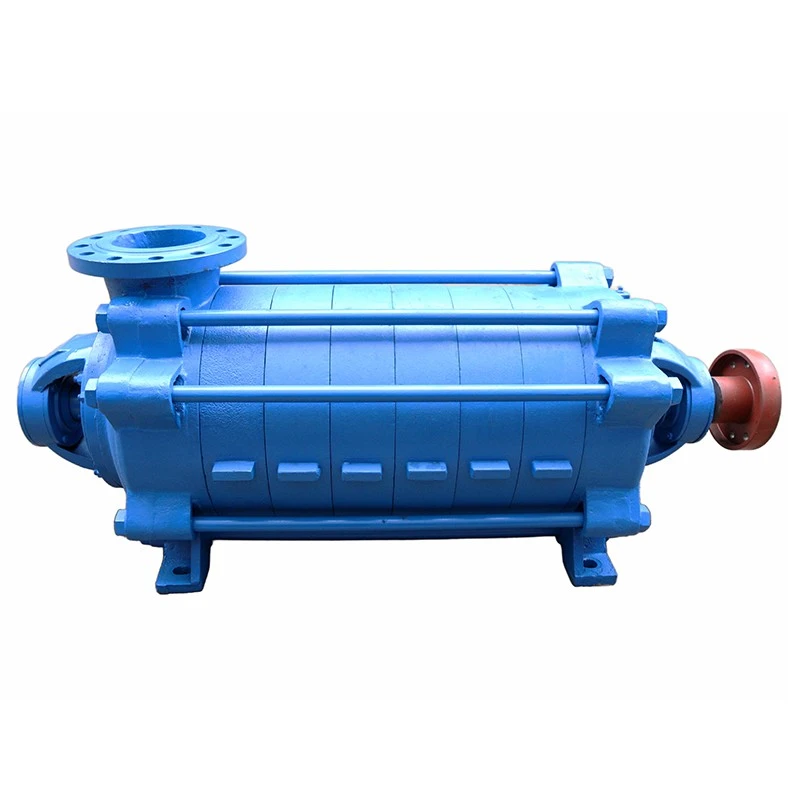

Yuqori bosim gorizontal ko'pburchakli nasos

Yuqori bosim gorizontal ko'pburchakli nasos

So'rov yuborish

Ta'rif

Yuqori bosim gorizontal ko'p sonli pompasi - bu toza suvga o'xshash va haroratni qattiq zarralar yoki suyuqlik bilan toza suv va suyuqlik bilan toza suvni tashish uchun ishlatiladi. Minalar va fabrikalarda suv ta'minoti va drenajlash uchun javob beradi.

Yuqori bosimli gorizontal ko'p sonli kentrakka nasoslari ko'p bosqichli va segmental qozonli qozonli ozuqa suv nasosidir. Toza suvni qattiq zarralar (abraziv buyumlar) yoki toza suvga o'xshash fizik va kimyoviy xususiyatlarga ega bo'lgan boshqa suyuqliklarni etkazish uchun. U o'rta va past bosimli qozon suvini etkazib berish uchun mos va umumiy markazni fraktsiyali sentrifugal toza suv nasosi sifatida ham ishlatilishi mumkin. Tubli suyuqlik harorat -20 ~ 15 daraja.

Model ma'nosi

D150-30*3

D: Mab ko'pli suv nasosi

150: oqim (m3 / h)

30: bosh (m)

3: Pompa seriyali

Ishlash oralig'i

Oqim Q: 6. 3-450 m³/h

Bosh H: 50-605 m

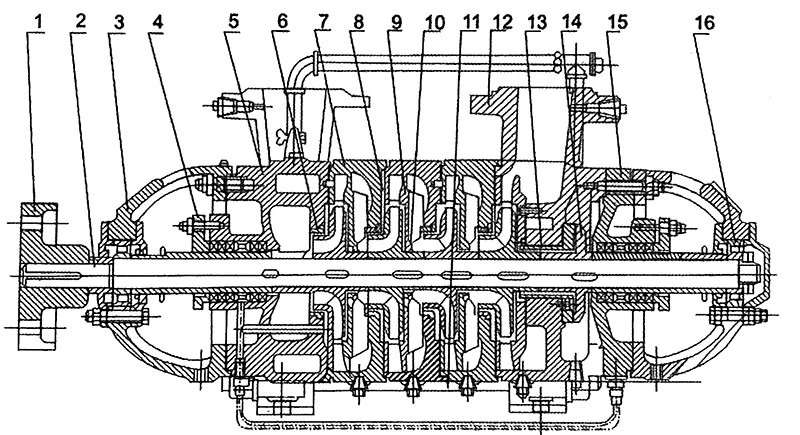

Tuzilma sxemasi

Single Suction Multistage Water Pump1

1.Pump Buping

2.shaffus

3. Repleks komponentlari

4. Xaychi bez

5. Kimga tegishli bo'limi

6. DASTING RING

7.Mending Bearch

8.impeller

9. Jasurot

10, "Vane Enn" ni boshqarish

11.tantting Bolt

12.dis qilish bo'limi

13. "Ring" ning 14.Balance Plitasi

Single Suction Multistage Water Pump3

Ishlash parametrlari

Tur	Sig'im Q (m³/h)	Bosh H (m)	Tezlik N (R / min)	Npsh r (m)	Effi to'qilgan η (%)	Shpal Kuch P (kw)	Motor		Tortmoq (kg)	LWH (mm)	Kalibr
							Kuch (kw)	Aysorish			Kalibr
							Kuch (kw)	Aysorish			Kirish	Rozetka
80D12x2	21.6 34.6 39.6	28.8 22.8 19	2950	3.36 3.58 3.73	69 75 72	2.46 2.84 2.82	4	Y112M-2	102	710x340x370	80	80
80D12x3	21.6 34.6 39.6	43.2 34.2 28.5	2950	3.36 3.58 3.75	69 75 72	3.69 4.26 4.23	5.5	Y132S₁-2	119	780x340x302	80	80
80D12x4	21.6 34.6 39.6	57.6 45.6 38	2950	3.36 3.58 3.73	69 75 72	4.92 5.69 5.64	7.5	Y132S₂-2	136	850x340x302	80	80
80D12x5	21.6 34.6 39.6	72 57 47.5	2950	3.36 3.58 3.73	69 75 72	6.15 7.10 7.05	11	Y160M₁-2	155	920x340x302	80	80
80D12x6	21.6 34.6 39.6	86.4 68.4 57	2950	3.36 3.58 3.73	69 75 72	7.38 8.52 8.46	11	Y160M₁-2	170	990x340x302	80	80
80D12x7	21.6 34.6 39.6	100.8 79.8 67.5	2950	3.36 3.58 3.73	69 75 72	8.61 9.49 9.87	15	Y160M₂-2	187	1060x340x302	80	80
80D12x8	21.6 34.6 39.6	115.2 91.2 76	2950	3.36 3.58 3.73	69 75 72	9.84 11.36 11.28	15	Y160M₂-2	204	1130x340x370	80	80
80D12x9	21.6 34.6 39.6	129.6 102.9 85.5	2950	3.36 3.58 3.73	69 75 72	11.07 12.78 12.69	18.5	Y160L-2	221	1200x340x370	80	80
80D30x3	23 43 50	102.6 90.0 79.8	2950	3 4 5	54.5 66.0 65.5	11.80 16.00 16.60	22	Y180M-2	145	730x373x380	80	80
80D30x4	23 43 50	136.8 120.0 106.4	2950	3 4 5	54.5 66.0 65.5	15.75 21.35 22.20	30	Y200L₁-2	163	791x373x380	80	80
80D30x5	23 43 50	171.0 150.0 133.0	2950	3 4 5	54.5 66.0 65.5	19.70 26.65 27.70	30	Y200L₁-2	181	852x373x380	80	80
80D30x6	23 43 50	205.2 180.0 159.6	2950	3 4 5	54.5 66.0 65.5	23.60 32.00 37.70	37	Y200L₂-2	200	923x373x380	80	80
80D30x7	23 43 50	239.4 210.0 186.2	2950	3 4 5	54.5 66.0 65.5	27.60 37.30 38.80	45	Y225M-2	218	1005x373x380	80	80
80D30x8	23 43 50	273.6 240.0 212.8	2950	3 4 5	54.5 66.0 65.5	31.50 42.70 44.40	55	Y250M-2	236	1045x373x380	80	80
80D30x9	23 43 50	307.8 270.0 239.4	2950	3 4 5	54.5 66.0 65.5	35.42 48.00 50.00	55	Y250M-2	255	1106x373x380	80	80
80D30x10	23 43 50	342.0 300.0 266.0	2950	3 4 5	54.5 66.0 65.5	39.40 53.80 55.50	75	Y280S-2	275	1167x373x380	80	80
100D16x2	37.6 54 72	36.8 31 20.4	2950	3.7 3.9 4.3	66 73 66	5.6 6 6.3	7.5	Y132S₂-2	135	750x400x415	100	100
