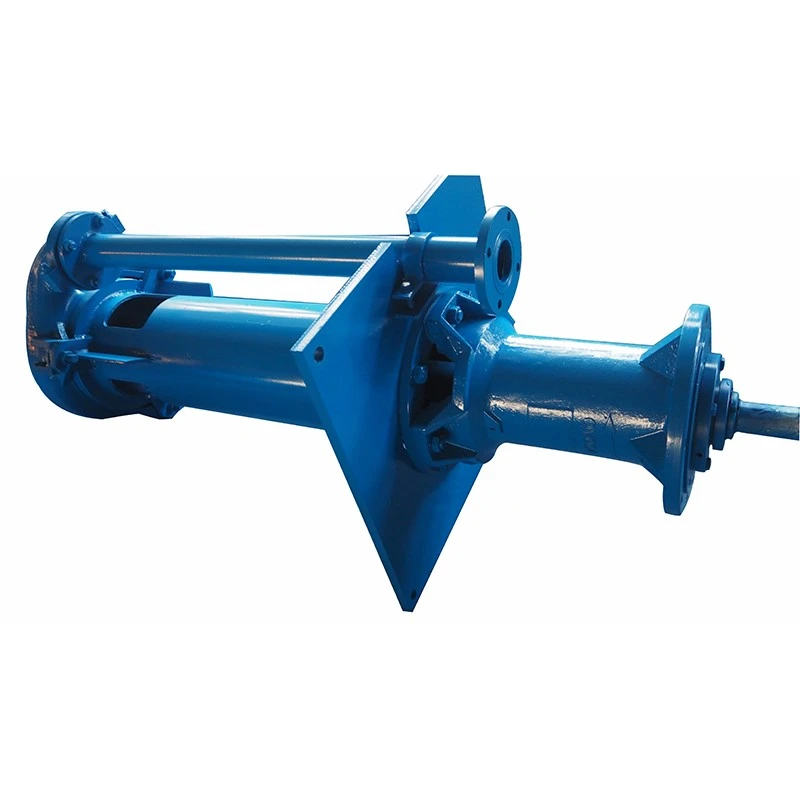

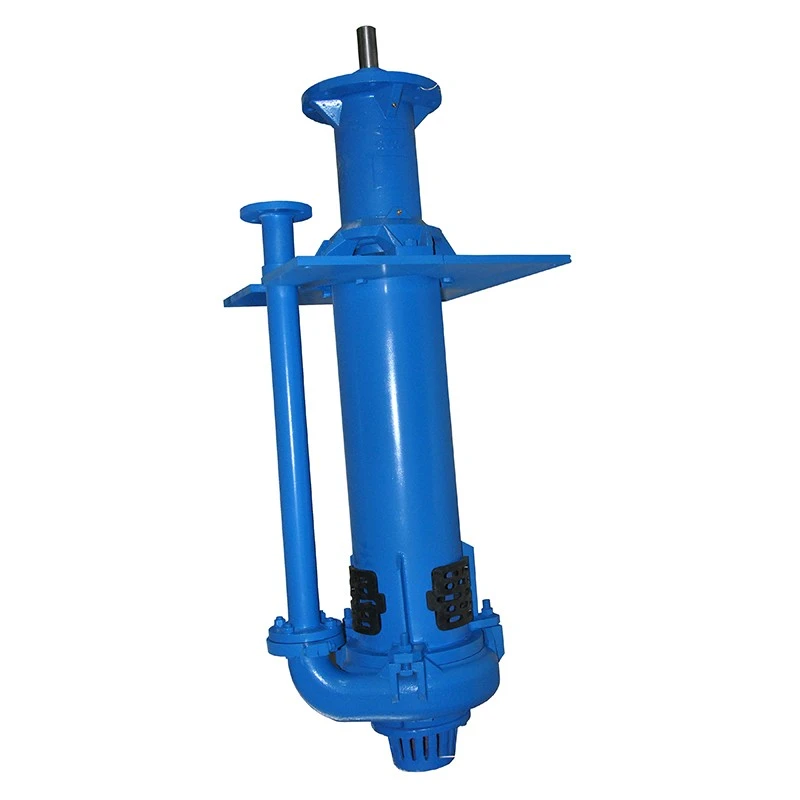

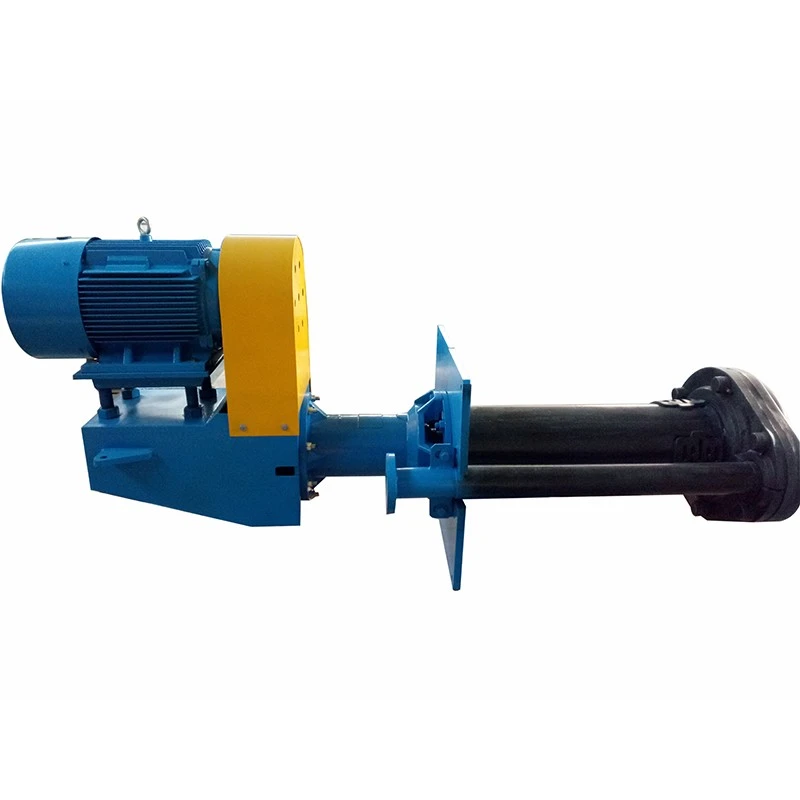

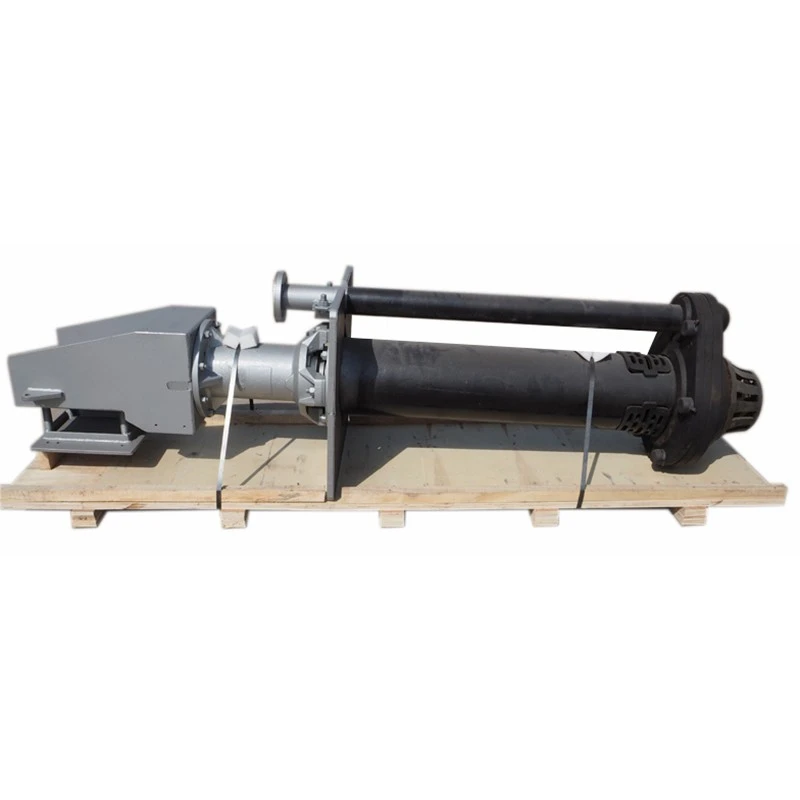

WSP, WSPR tipidagi nasoslar korroziyaga chidamli vertikal nasos bo'lib, ular korroziy, qo'pol zarrachalar, yuqori konsentratsiyali shlamlarni tashish uchun mos bo'lishi mumkin. Nasoslar odatda ishlash uchun hovuz yoki chuqurga kiradi. Korroziyaga chidamli vertikal nasos hech qanday val muhrlari yoki milya muhr suvini talab qilmaydi, va hatto assimilyatsiya quvvati etarli bo'lmagan sharoitlarda ham normal ishlashi mumkin.Haddan tashqari oqim komponentlari va vallar abraziv shlamini tashish uchun mos bo'lgan metall materiallardan tayyorlanadi.WSP (R) suv osti nasoslari metallurgiya, tog'-kon sanoati, ko'mir, energetika, qurilish materiallari va boshqa sohalarda keng qo'llaniladi. WSP(R) nasoslarining tarkibiy qismlari suyuqlikka botiriladi. rezina bilan qoplangan bo'lib, korroziv atalalarni tashish uchun mos keladi.
40PV (L)-WSP
40: Chiqish diametri
PV: PV tipidagi rulman komponentlari
L: kengaytirilgan mil seriyasi
WSP: Suv osti nasoslari

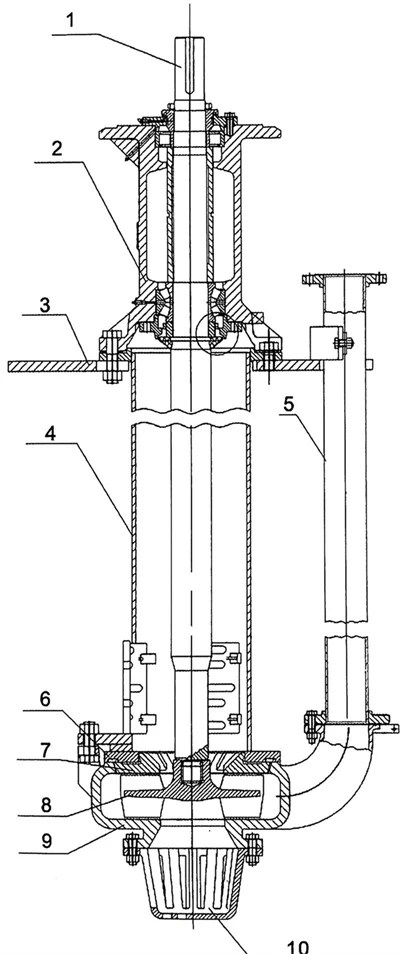

Strukturaviy diagramma
1.Milliy 2.Podshipniklar yig‘indisi 3.O‘rnatish plitasi 4.Tayanch 5.Bo‘shatish trubkasi 6.Muhrlovchi prokladka 7.Orqa himoya plitasi 8.Imperator 9.Nasos korpusi 10.Filtr ekrani
ishlash parametri
|
Turi |
Imkoniyatlar (m3/soat) |
Bosh (m) |
Tezlik (d/daq) |
mil kuchi (kVt) |
Dvigatel kuch (kVt) |
Motor modeli |
kalibr (mm) |
|
|
Kirish |
chiqish |
|||||||
|
100RV-WSP (R) |
43.2 104.4 133.2 |
9 8.1 7.5 |
600 |
2.7 4.2 4.8 |
5.5 7.5 11 |
Y160M2-8 Y160L-8 Y180L-8 |
175 |
100 |
|
100RV-WSP (R) |
57.6 124.2 154.8 |
12.2 11 10.2 |
700 |
4.8 6.7 7.7 |
11 15 |
Y160L-6 Y180L-6 |
175 |
100 |
|
100RV-WSP(R) |
61.2 129.6 162 |
13.4 12 11.2 |
730 |
5.6 7.7 8.8 |
11 15 18.5 |
Y180L-8B5 Y200L-8B5 Y225S-8B5 |
175 |
100 |
|
100RV-WSP (R) |
64.8 142.2 174.6 |
16 14.4 13.3 |
800 |
7 10.1 11.3 |
15 18.5 |
Y160L-6 Y200L1-6 |
175 |
100 |
|
100RV-WSP (R) |
68.4 151.2 187.2 |
18 16.4 15 |
850 |
8.4 12.3 13.6 |
15 18.5 22 |
Y160L-6 Y200L1-6 Y200L2-6 |
175 |
100 |
|
100RV-WSP (R) |
75.6 160.2 194.4 |
20.3 18 16.7 |
900 |
10.4 14.3 15.8 |
18.5 22 30 |
Y200L1-6 Y200L2-6 Y225M-6 |
175 |
100 |
|
100RV-WSP (R) |
81 174.6 214.2 |
23.8 21.5 20 |
980 |
13 18.6 20.8 |
22 30 37 |
Y200L2-6 Y225M-6 Y250M-6 |
175 |
100 |
|
100RV-WSP (R) |
82.8 176.4 217.44 |
25 22.5 20.7 |
1000 |
14.1 19.6 21.9 |
22 30 37 |
Y180L-4 Y200L-4 Y225S-4 |
175 |
100 |
|
100RV-WSP (R) |
86.4 185.4 230.4 |
27.5 24.5 22.5 |
1050 |
16.2 22.5 25.2 |
30 37 45 |
Y200L-4 Y225S-4 Y225M-4 |
175 |
100 |
|
100RV-WSP (R) |
90 194.4 240.48 |
30.3 27 25 |
1100 |
18.5 25.9 29.2 |
30 37 45 |
Y200L-4 Y225S-4 Y225M-4 |
175 |
100 |
|
100RV-WSP (R) |
97.2 205.2 243 |
33 29.5 27.4 |
1150 |
21.8 29.9 33.3 |
30 45 |
Y200L-4 Y225M-4 |
175 |
100 |
|
100RV-WSP (R) |
100.8 212.4 262.8 |
35.8 32.1 29.5 |
1200 |
24.5 33.7 37.7 |
37 45 |
Y225S-4 Y225M-4 |
175 |
100 |
|
150SV-WSP (R) |
118.8 208.8 288 |
8.1 8 6.5 |
500 |
6.4 8.5 9.6 |
11 15 |
Y180L-8 Y200L-8 |
150 |
|
|
150SV-WSP (R) |
133.2 223.2 316.8 |
10.6 9.6 8 |
550 |
8.5 11 13 |
15 18.5 22 |
Y200L-8 Y225S-8 Y225M-8 |
150 |
|
|
150SV-WSP (R) |
140.4 244.8 342 |
12.7 11.4 9.7 |
600 |
10.8 14.3 17 |
22 30 |
Y225M-8 Y250M-8 |
150 |
|
|
150SV-WSP (R) |
154.8 270 367.2 |
15 13.4 11.4 |
650 |
13.7 18.6 21.5 |
22 30 37 |
Y225M-8 Y250M-8 Y280S-8 |
150 |
|
|
150SV-WSP(R) |
154.8 288.4 396 |
17.5 15.5 13.2 |
700 |
16.4 22.6 26.8 |
30 37 45 |
Y225M-6 Y250M-6 Y280S-6 |
150 |
|
|
150SV-WSP (R) |
162 297 421.2 |
19 16.9 14.5 |
730 |
18.6 25.8 31.4 |
37 45 |
Y280S-8 Y280M-8 |
150 |
|
|
150SV-WSP (R) |
183.6 324 450 |
22.5 20.2 17.2 |
800 |
25 33.6 39.8 |
37 55 |
Y250M-6 Y280M-6 |
150 |
|
|
150SV-WSP (R) |
208.8 352.8 489.6 |
25.5 22.5 19.2 |
850 |
32.2 40.8 56.9 |
55 75 |
Y280M-6 Y315S-6 |
150 |
|
|
150SV-WSP (R) |
212.4 367.2 511.2 |
28.8 25.5 21.9 |
900 |
37 48.1 57.5 |
75 90 |
Y315S-6 Y315M-6 |
150 |
|
